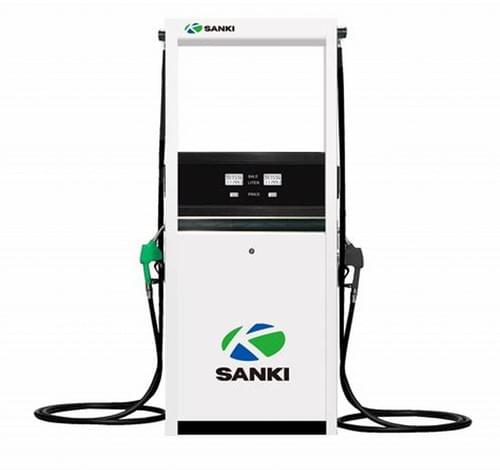

ماكينة وقود سانكي الاعتمادية والمجربة
Hydraulic System & Performance
Flow Rate:
Standard Speed: 5 to 50 Liters Per Minute (LPM)
High Speed: 7 to 70 Liters Per Minute (LPM)
Ultra-High Speed (for diesel trucks): up to 90 LPM or more
Pumping Unit/Gear Pump: Typically a vane-type or gear-type pump with a built-in air separator and filter.
Flow Meter:
Type: 4-piston positive displacement meter.
Accuracy: ±0.25% or better.
Repeatability: ≤ 0.1%
Inlet Pipe: 1.5 inches
Outlet Pipe: 0.75 inches or 1 inch for high-flow models.
Nozzle:
Type: Automatic shut-off nozzle (e.g., ZVA, OPW models).
Spout Size: Varies for different fuels (unleaded, diesel).
Suction Lift:
Submersible Pump Type: Connects to a turbine pump in the tank.
Suction Pump Type: Can lift fuel from up to 4.5 meters.
2. Electronic & Electrical System Motor:
Power: 0.75kW (1 HP) for standard flow, 1kW for high flow.
Voltage: 380V (3-phase) or 220V (1-phase).
Frequency: 50Hz / 60Hz.
Safety: Explosion-proof motor (ATEX and IECEx certified).
Display:
Type: Backlit LCD or high-brightness LED display.
Digits:
Sale Amount: 6-8 digits.
Volume: 6-8 digits.
Unit Price: 4-6 digits.
Power Supply: AC380V -15% to +10% or AC220V -15% to +10%.
